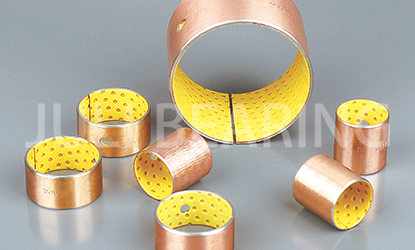

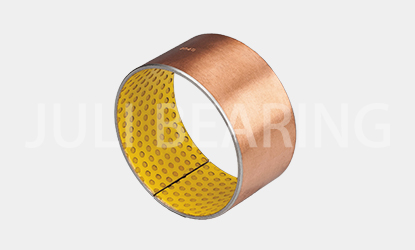

Suitable for long-term use under boundary lubrication without maintenance; recommends initial grease, oil hole bearing surface can guarantee the best fat distribution, while refueling process can greatly improve the life of the product; suitable for heavy load at low speed rotary motion and the rocking motion; excellent carrying capacity, low friction coefficient and low wear rate; no water absorption and oil absorption, dimensional stability; after the press-fit bearing can be processed again to get a better tolerances.
load pressure P(Dry friction) | |
---|---|
Static load | 140 [ N/mm2 ] |
Dynamic load | 70 [ N/mm2 ] |
Max line speed V | |
---|---|
Grease Lubrication | 2.5 [ m/s ] |
PV value limit | |
---|---|
Grease Lubrication | 2.8 [ N/mm2 ] |
Friction Coefficient u | |
---|---|
Grease Lubrication | 0.06~0.12 |
Mating Axis | |
---|---|
Hardness | > 270 [ HB ] |
Roughness | 0.4~1.25 [ Ra ] |
Working temperature | -60~+120 [ ℃ ] |
Thermal conductivity | 52 [ W/mk ] |
Coefficient of linear Expansion | 11×10-6/K [ Axial ] |
Outside surface Plating | copper/tin |
1. save a lot of copper, copper sets working hours to save for car;
2. It is recommended initial grease, oil hole bearing surface can guarantee the best fat distribution, while refueling process can greatly improve the pot life of the product;
3. suitable for heavy at low speed rotary motion and rocking motion;
4. Excellent carrying capacity, reduced coefficient of friction and low wear rate;
5. No water absorption and oil absorption, dimensional stability;
6. After the press-fit bearing can be processed again to get a better tolerance;
Straight sets, WC thrust washers, skateboards and other non-standard parts and so on.
