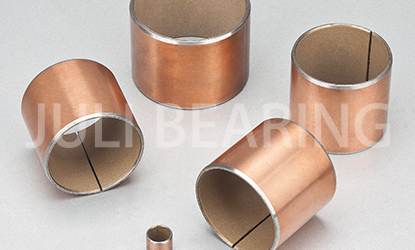

JLB-1P Reciprocating motion bearings
Detailed description
The material is based on shock absorbers and lateral reciprocation larger force of special conditions and development of products. It has a very low coefficient of friction and good wear resistance, can be used in the lubrication gap. The major products in automotive shock absorbers, motorcycle shock absorbers, hydraulic cylinder and so on.
Technical Parameters
load pressure P(Dry friction) |
Static load |
250 [ N/mm2 ] |
Dynamic load |
140 [ N/mm2 ] |
Oscillation Load |
60 [ N/mm2 ] |
Max line speed V |
Dry friction |
2.5 [ m/s ] |
Oil Lubrication |
> 5 [ m/s ] |
PV value limit |
Dry friction |
1.8 [ N/mm2 ] |
Oil Lubrication |
3.6 [ N/mm2 ] |
Friction Coefficient u |
Dry friction |
0.08~0.20 |
Oil Lubrication |
0.02~0.12 |
Mating Axis |
Hardness |
> 220 [ HB ] |
Roughness |
0.4~1.25 [ Ra ] |
Working temperature |
-200~+280 [ ℃ ] |
Thermal conductivity |
40 [ W/mk ] |
Coefficient of linear Expansion |
11×10-6/K [ Axial ] |
Outside surface Plating |
copper/tin |
Application Features
1. lubricating ability in off the oil situation, good wear protection film clear advantage;
2. can better protect the shaft surface, reducing wear and tear;
3. Especially suitable for reciprocating motion;
4. because it does not lead, it comply with the environmental requirements;
5. The product is suitable for automotive, motorcycle shock absorbers, various hydraulic cylinders, hydraulic motors, pneumatic components.
Available forms
Straight sets, flanged bushings, WC thrust washers, skateboards and other non-standard parts and so on.
